压簧固定式热电偶 Pressure spring fixed thermocouple

产品详情

压簧固定式热电偶通过压簧将热电偶测量端与被测物表面紧贴，以提高测量的可靠性和准确性。与显示仪表等配套使用，可直接

测量0～600 ℃范围内的温度。该热电偶为软性导线，可以自由弯曲，具有热响应时间短，使用方便等特点，适用于塑料挤出机、轻

纺、食品等工业。

Pressure spring fixed thermocouple can cling to the measured objects through a pressure spring in order to increase reliability

and accuracy. Matched with indicating instrument, the thermocouple can directly measure the temperature within 0~600℃. Being

flexible conductor, the thermocouple can be bent freely and has the characteristics of short response time and convenient usage

etc. It is applicable to the industries as extruder mould, textile, food etc.

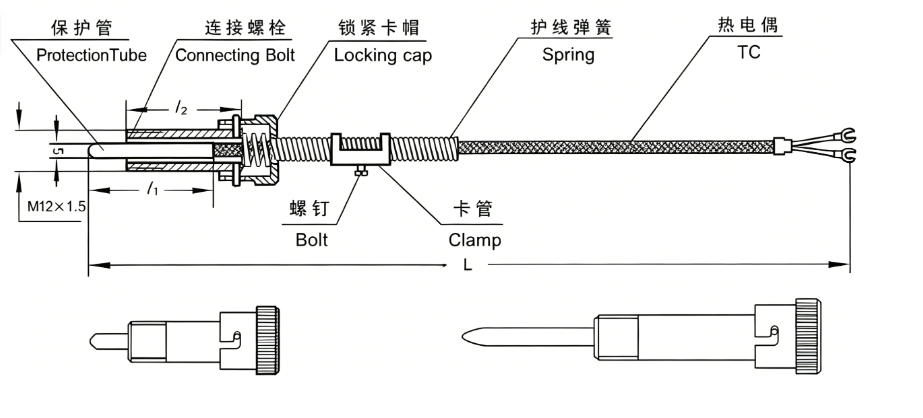

型号规格 Model Specification

产品型号Model	分度号Graduation Mark	测量范围 (℃)Measuring Range(℃)	热响应时间 t 0.5 (s)Thermal Response Time t 0.5 (s)	保护管材料Protection Tube Material	规格 Specification	连接螺栓Connecting bolt
					总长 Overall length (mm)	保护管 Protection tube l₁(mm)
WRNT-01	K	0~600	≤5	1Cr18Ni9Ti	1000, 1500, 2000, 2500, 3000, 3500, 4000	3060	35 或 7035 or 70
WRET-01	E	0~400	≤5	1Cr18Ni9Ti	1000, 1500, 2000, 2500, 3000, 3500, 4000	3060	35 或 7035 or 70
