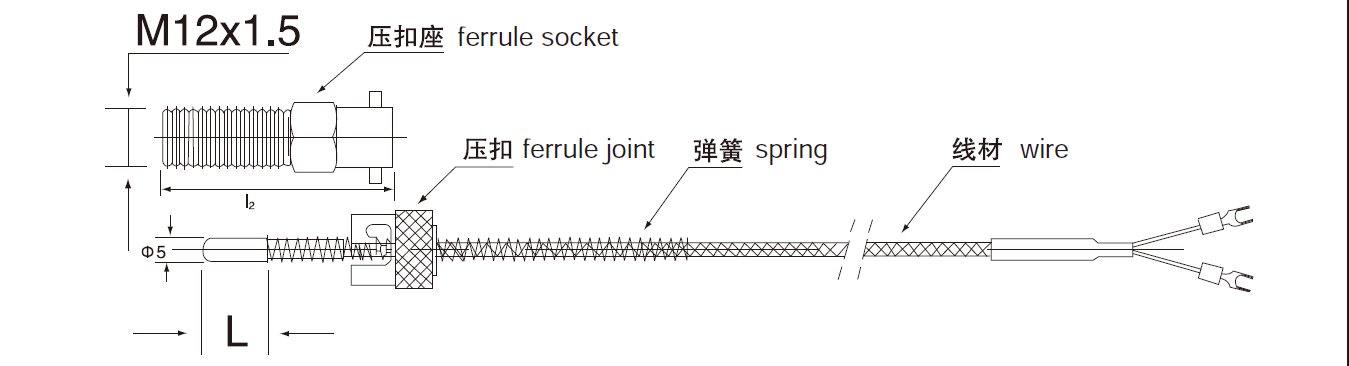

压扣式热电偶 Ferrule type thermocouple

产品详情

产品型号 (Model)	分度号 (Graduation Mark)	测量范围 (℃) (Measuring Range (℃))	热响应时间 t 0.5 (s) (Thermal Response Time t 0.5 (s))	保护管材料 (Protection Tube Material)	规格 Specification - 总长 (Overall length)(mm)	规格 Specification - 保护管 (Protection tube L₁)(mm)	连接螺栓 (Connecting bolt)
WRNT-02	K	0~600	≤5	1Cr18Ni9Ti	1000, 1500, 2000, 2500, 3000, 3500, 4000	30 / 60	35 或 70 (35 or 70)
WRET-02	E	0~400	≤5	1Cr18Ni9Ti	1000, 1500, 2000, 2500, 3000, 3500, 4000	30 / 60	35 或 70 (35 or 70)

适用于挤出机，射出设备、表面测试管。

It is applicable to extruder, injection equipment, and surface testing tube.

订货须写明：

（1）产品名称和型号。

（2）总长和置入深度（L×l1×l2）。

（3）l1＝90、l2＝70为特殊订货。

The order shall be marked:

(1)The name and model of the product.

(2)The overall length and inserted depth (L×l1×l2 ).

(3) Those of l1=90,l2＝70 arespecial orders.
