软性热电偶 Soft thermocouple

由于软性热电偶的绝缘层和保护层均为非金属的耐高温材料（或外层不锈钢丝编织），具有任意弯曲、缠绕、不畏震动、安装方

便、使用灵活的特点，因此在某些特定场合的使用中优于铠装热电偶，主要应用于航空、航天、机械等工业炉窑及热处理，钢厂、铝

厂、玻璃、陶瓷和建材生产的温度测量和控制。

Due to nonmetallic high temperature resistance material (or stainless steel wire braided outer layer) used for insulation

layer and protection layer, soft thermocouple can be bent and twisted freely, and has the characteristics of not fearing vibration,

convenient installation and flexible usage etc. Therefore, sheathed thermocouple is preferred for some specific applications, such as

industrial furnace and heat treatment for aviation, spaceflight, and machinery etc., temperature measurement and control for steel

mills, aluminum plants, glasses, ceramics and building materials.

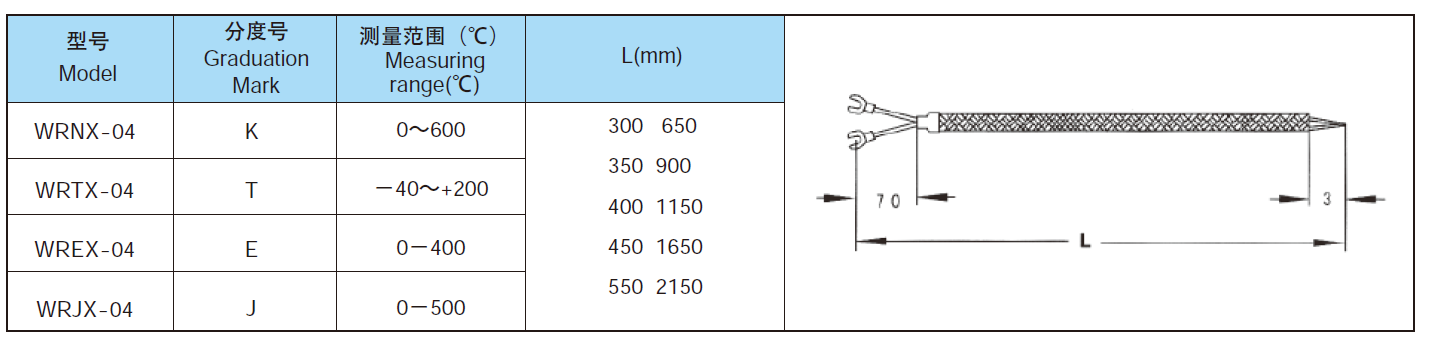

软性热电偶（适用于工业窑炉、航空、航天、机械、玻璃、铝厂、建材的温度测量）

Soft thermocouple (applicable to temperature measurement for industrial furnace, aviation, spaceflight,

machinery, glasses, aluminum plants, and building materials)

注：

（1）WR□X-06P型的绝缘层/保护层/屏蔽层，为玻璃纤维/不锈钢。

（2）线径为：Φ0.3mm、0.5mm、0.8mm、1.0mm。

（3）L按用户要求制作。

Note:

(1) Insulation layer/ protection layer/ shielded layer of WR□X-06P type is fiber glass/ stainless steel.

(2) Wire diameter: Φ0.3mm, 0.5mm, 0.8mm, 1.0mm.

(3) L will be manufactured as per user’s requirements.
