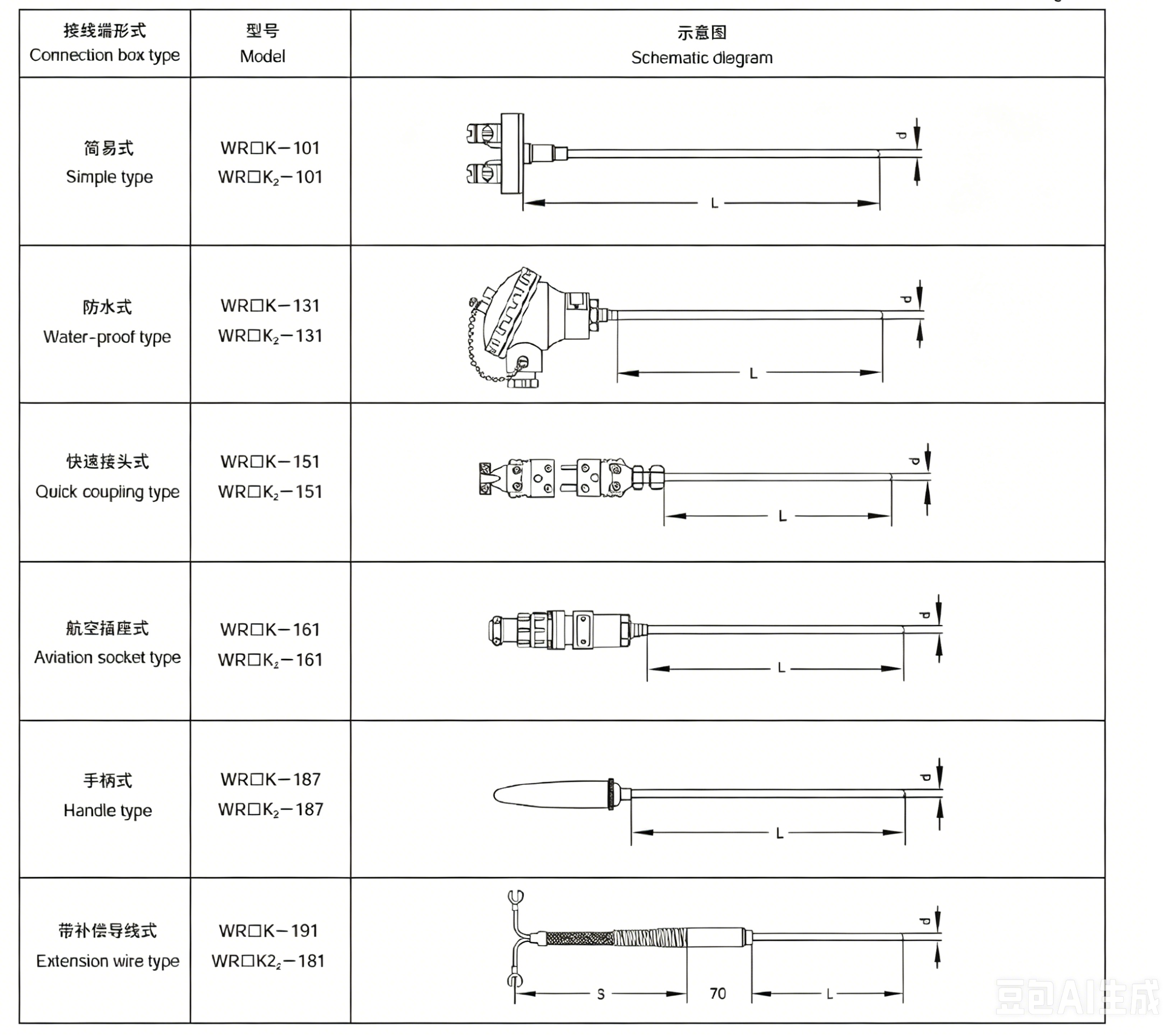

无固定装置式铠装热电偶 Non-fixed device sheated thermocouple

注：

（1）WRNK-101可用于装配式热电偶铠装内芯的更换。

（2）带补偿导线式常规附带500mm引线， 如需增加请注明长度。

（3）测量端常规供货为绝缘式，如需接壳，型号尾数“1”改为“2”；“7”改为“8”。例：131改为 132；187改为188。

（4）铠装热电偶的分度号、测量范围、热响应时间、直径、可供长度参见26－28页，表6、图35。

Note:

(1)WRNK-101 can be used to replace the inner core of assebmly thermocouple.

 (2)Extension wire type usually is attachedwith 500mm lead wire,if need to add,please indicate the length.

(3) The measuring terminal is supplied with insulation type.

If it needs to be connected with the shell, change the model mantissa“1”to“2”,“7”to "8". for exampple 131 is changed

to be 132;187 is changed to be 188. (4) Refer to Page 26-28, Table 6 and Fig 35 for the graduation mark,measurement range.

Response time, diameter and available length of the sheathed thermocouple.
