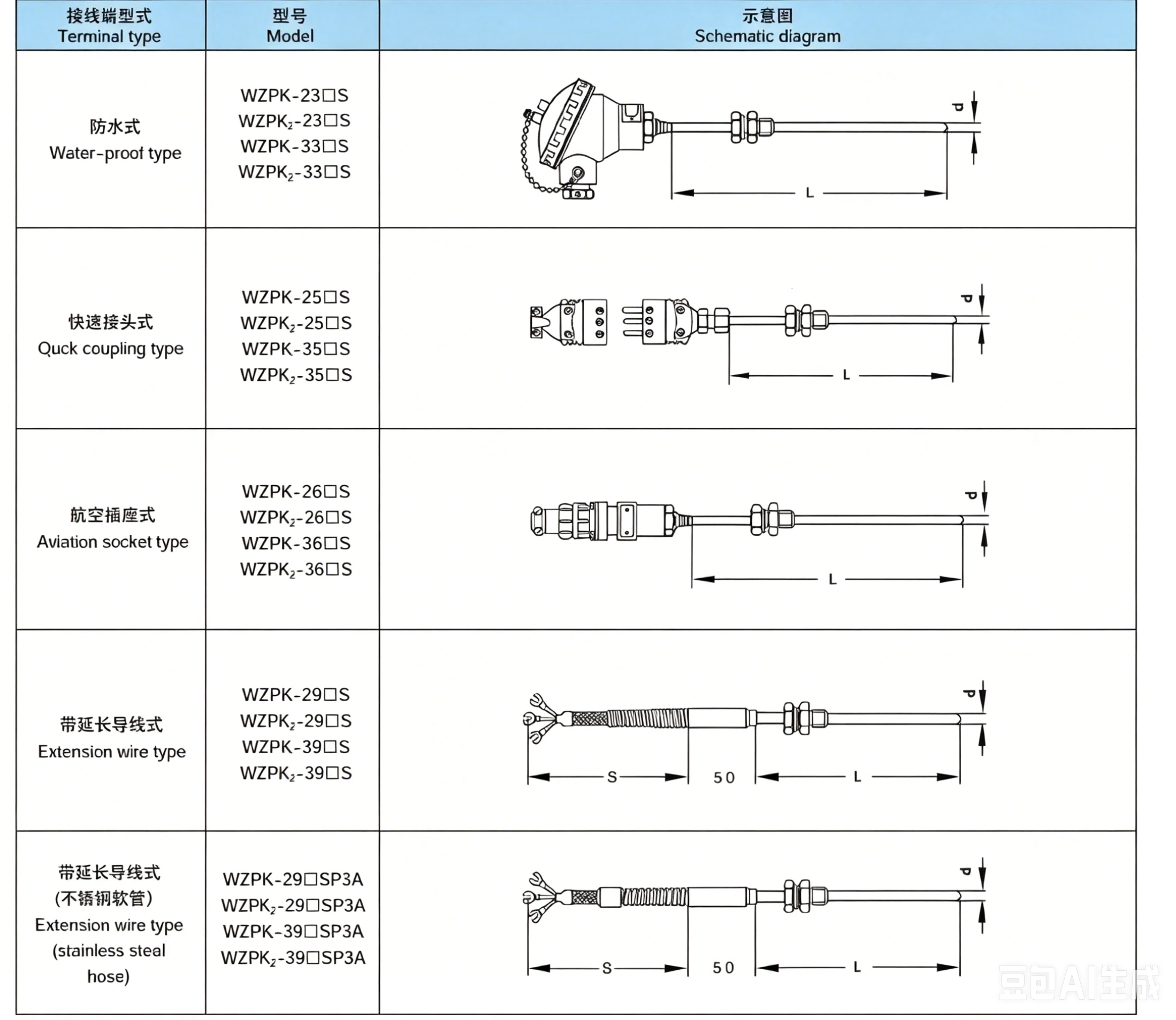

卡套螺栓式铠装铂热电阻 Ferrule bolt sheathed platinum thermal resistance

产品详情


注：

（1）铠装热电阻直径≥Φ5，卡套螺栓的螺栓常规供货为M16×1.5；≤Φ4为M12×1.5。

（2）固定卡套螺栓公称压力：2.5MPa。活动卡套螺栓公称压力为常压。

（3）卡套螺栓规格参见112页，图165。

（4）型号后加“S”为进口元件。

Note:

(1)The diameter of sheathed thermal resistance is not less than Φ5.The normal supply of ferrule bolt bolt is M16×1.5;and≤Φ4 is M12×1.5.

(2)The fixed ferrule bolt's nominal pressure is 2.5MPa,while the movable ferrule bolt's nominal pressure is normal pressure.

(3)Refer to page112,Fig 165 for the specification of ferrule bolt.

(4) The model added“S”is imported element.
