表面热电偶：WRNM系列 Surface thermocouple: WRNM series

在许多场合下，按工艺要求需作现场流动测量，WRNM系列表面热电偶是按上述工艺要求设计的新产品与WSK-101和

WSK-1310系列袖珍温度数显仪表配套使用，被广泛应用在纺织、印染、造纸、塑料、橡胶、铝液、建筑等行业部门。

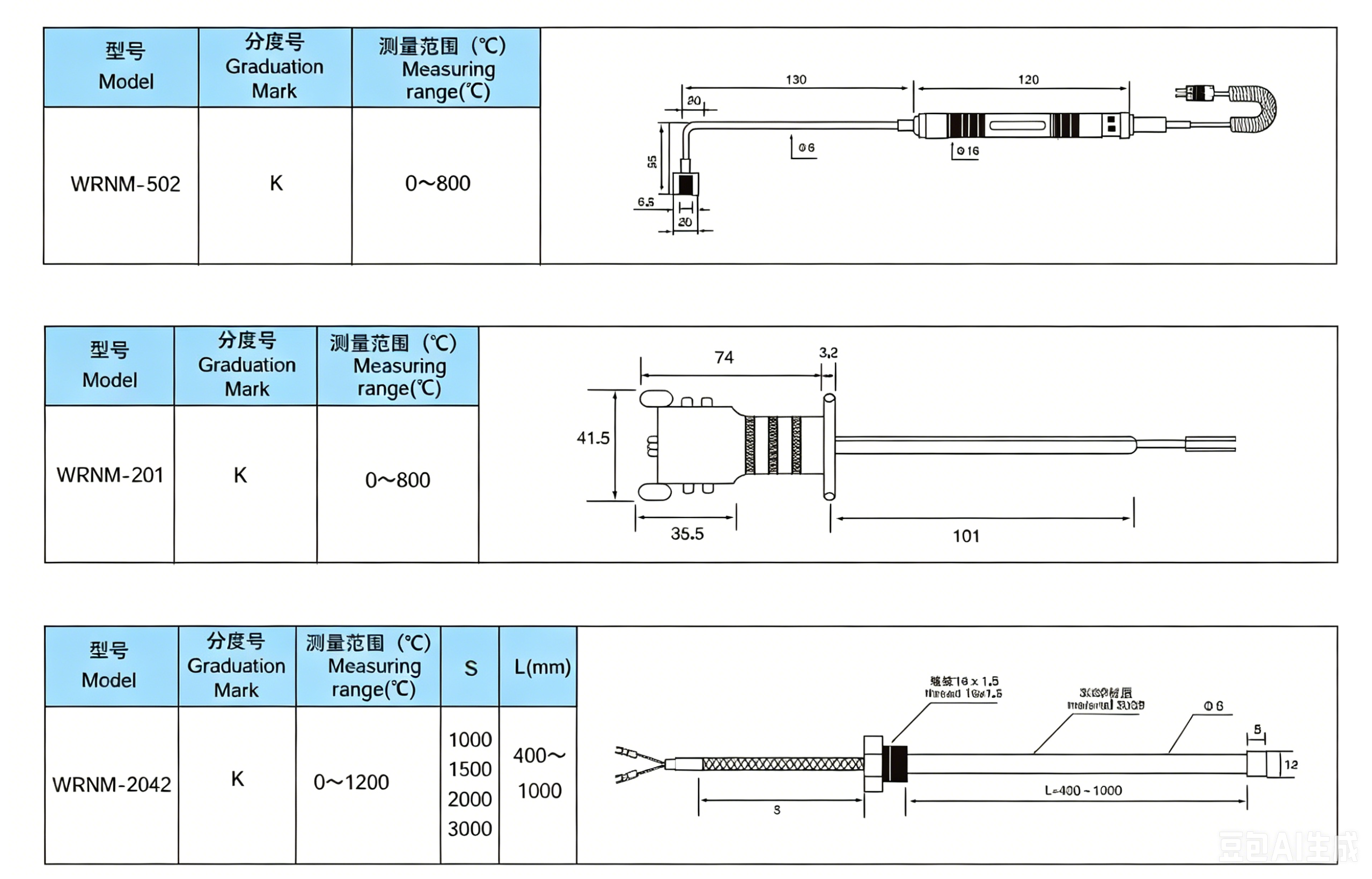

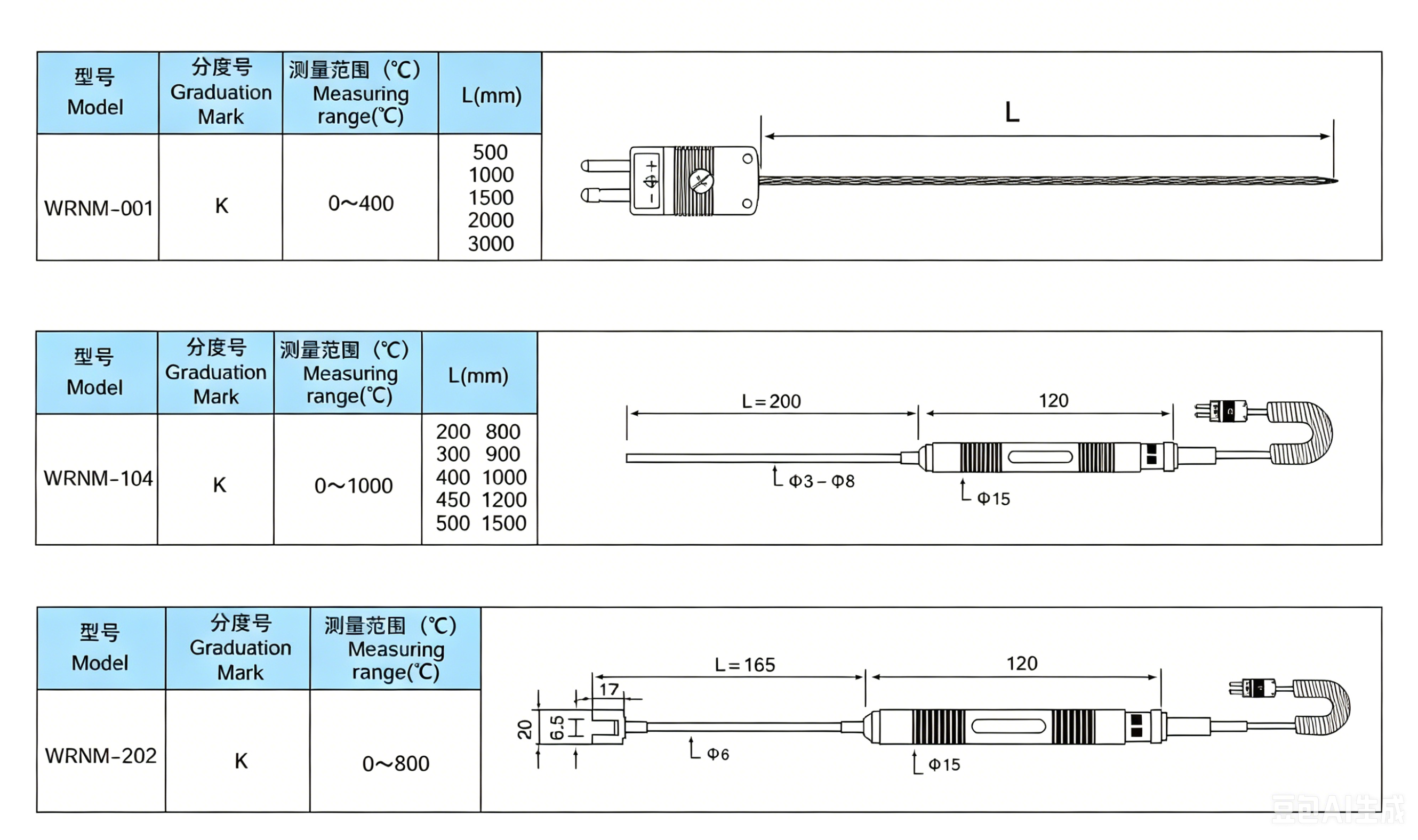

WRNM系列表面热电偶分手柄式、直柄式、吸柱式、直角式、四轮式等几种不同的形状，可根据被测物的不同形状的需

要分别选择。

配套仪表WSK型袖珍温度数字显示仪，外形轻巧、携带方便，特别与加工现场如野外作业尤为适用。

主要性能指标

分度号：K 精度等级：1.5 测温范围：－50～＋1300

Flow measurement is necessary in many cases according to process requirement, WRNM series of surface

thermocouples are new products designed on the basis of abovementioned process requirement. Matched with WSK-

101 and WSK-1310 series pocket temperature digital display instruments, WRNM series of surface thermocouples are

widely applicable to the industries as textile, dyeing, papermaking, plastic, rubber, aluminum liquid, construction etc.

WRNM series of surface thermocouples are divided into different shapes, such as handle type, straight shank type,

absorption column type, right angle type, and four-wheel type, they can be chosen as needed for different shapes of

measured objects.

Matched WSK type pocket temperature digital display instrument has deft shape, easy to carry, especially applicable

to local process and field working.

Key performance indexes

Graduation mark: K Accuracy class: 1.5 Measuring range: -50 ~ +1300
