固定法兰多点式铠装热电偶 Fixed flange multipoint sheathed thermocouple

多点型铠装热电偶有非隔爆型和隔爆型。适用于测量合成塔、反应罐等设备，可同时测量不同层面或同一层面各个点不同的气态或液态等介质的温度。各点的长度可按用户要求分别制作。

Multipoint sheathed thermocouples cover non explosion-proof type and explosion-proof type.They are applicable to

measuring equipment such as synthesizing tower and reaction pot,being able to measure the temperature of different

mediums（such as gaseous mediums or liquid mediums）at the same layer or the different points in the same layer.

The length of such points can be manufactured as per user’s requirements.

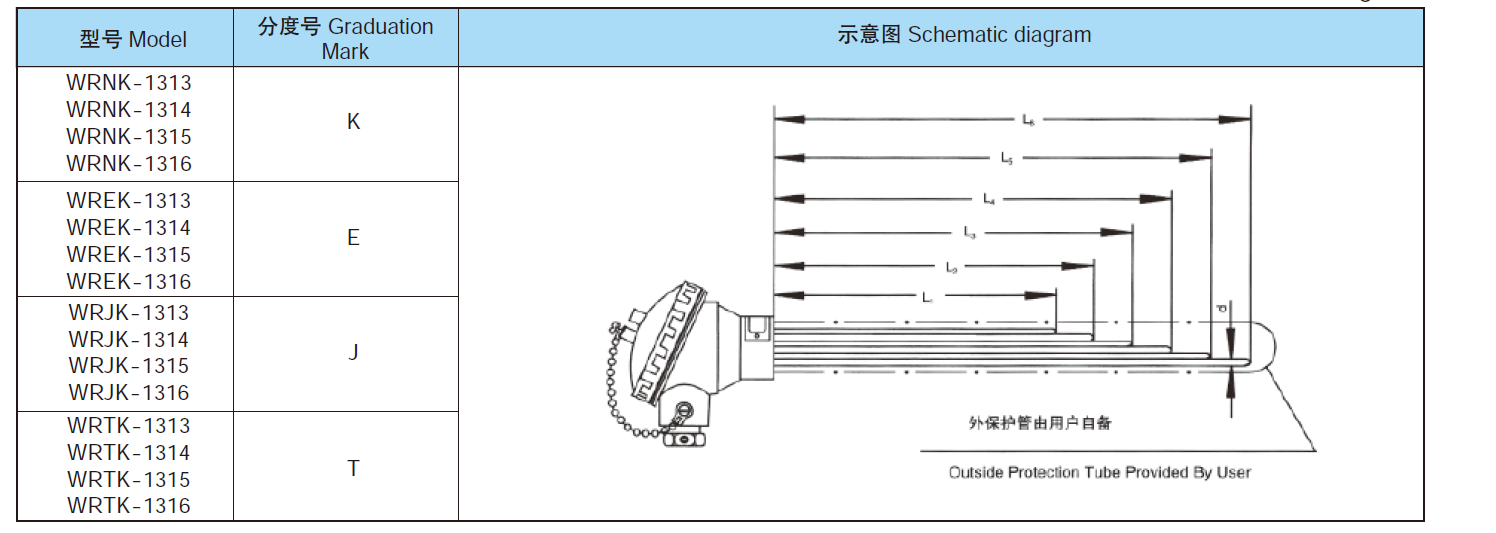

无固定装置多点式铠装热电偶 Non-fixed device multipoint sheathed thermocouple without device

注：

（1）多点式铠装热电偶外径d（mm）为Φ3、Φ4、Φ5、Φ6四种。

（2）常规多点式热电偶分三点、四点、五点、六点四种规格。

Note:

（1）Multipoint sheathed thermocouple's external dameter d（mm）is divided into four classes:Φ3,Φ4,Φ5 and Φ6.

（2）The ordinary multipoint thermocouple covers four specifications: thiple-point, four-point,five-point and six-point.
