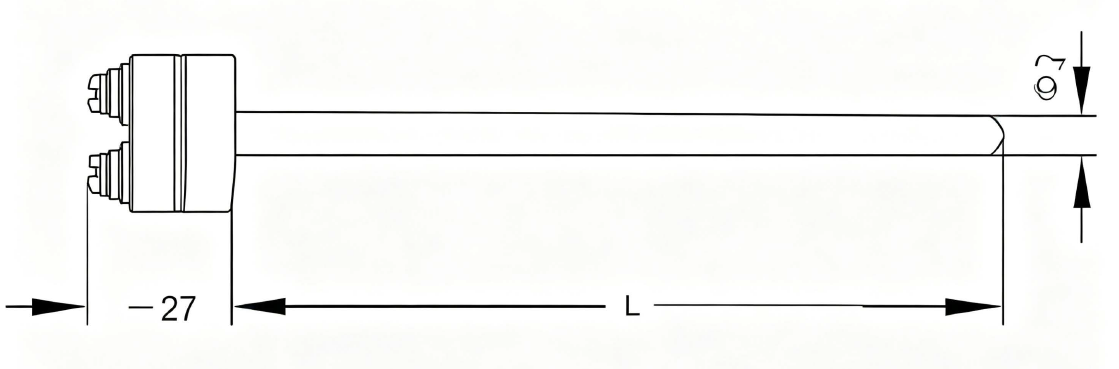

| 型号 (Model) | 分度号 (Graduation Mark) | 测量范围 (℃) (Measuring Range) | 热响应时间 τ0.5 (s) (Thermal Response Time t 0.5 (s)) | 保护管材料 (Protection Tube Material) | L(mm) |
|---|---|---|---|---|---|
| WRR-100 | B | 0 ~ 1600 | ≤45 | 刚玉质 (Corundum) | 225 |
| WRP-100 | S | 0 ~ 1300 | ≤45 | 高铝质 (High Al₂O₃) | 225 |
注:贵金属热电偶丝直径为:0.5mm。
Note:The diameter of noble metal thermocouple wires is 0.5mm.
